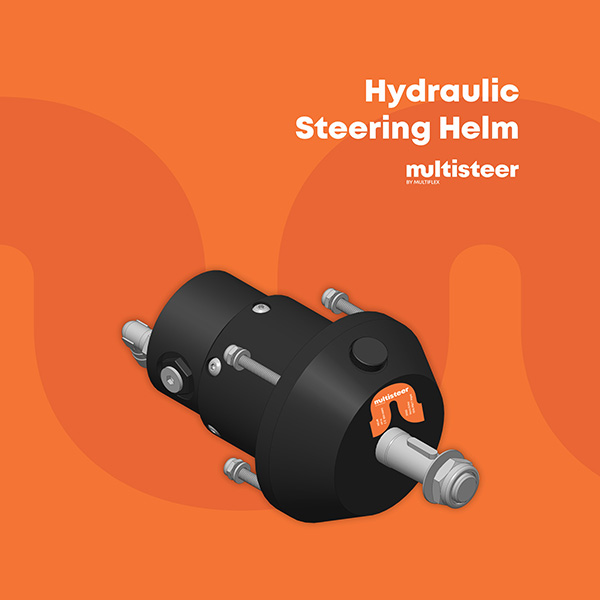

HP-16 | Flush Mount Hydraulic Helm Pump 16 cc / 0.9 ci

Salient Features

› Robust design

› Ball Bearing Piston race

› Built-in Lock Valve to safeguard feedback from the Rudder

› Integral Relief Valve to protect the steering system from excess pressure

› 3/4” standard tapered Shaft

› Easily accessible Lock Valve Seals & Shaft Seal for replacement

› All Helms include a pair of 90° adjustable Chrome plated Brass Elbow Fittings to connect to 5/16” Hose tube

› Both the Ports are tightly locked with red dummy plugs for hose connection to the Cylinder

› The dummy port is locked with Hex Stud which can be used to connect to the dual station kit

› Mounting Hardware & Template are provided with helms

› Helm mounting is designed in such a way that it is easily interchangeable with other brands

› Robust design

› Ball bearing piston race

› Built-in lock valve to safeguard feedback from the rudder

› Integral relief valve to protect the steering system from excess pressure

› 3/4” standard tapered shaft

› Easily accessible lock valve seals & shaft seal for replacement

› All Helms include a pair of 90° adjustable chrome plated brass elbow fittings to connect to 5/16” hose tube

› Both the ports are tightly locked with dummy plugs to avoid oil leakage

› The dummy port is locked with dummy plug which can be used to connect to the dual station kit when required

› Mounting hardware & template are provided with helms

› Helm mounting is designed in such a way that it is easily interchangeable with other brands
