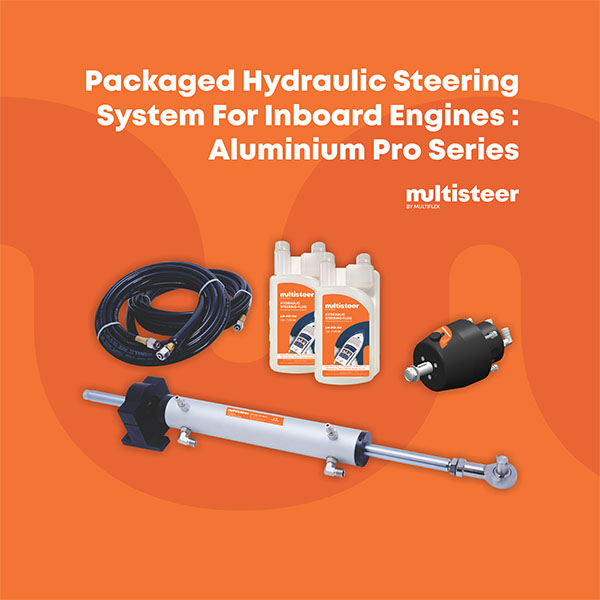

Aluminium Pro Series | Packaged Hydraulic Steering System for Inboard Engines

The Standard Aluminium Pro Series Steering Kit IH-XX-YY-A-ZZ for Single Inboard Engine.

Description

The Standard Aluminium Pro Series Steering Kit IH-XX-YY-A-ZZ for Single Inboard Engine includes the following items:

Model
Description
Quantity
HP-XX Front Mount Hydraulic Helm Pump

(XX represents Helm)

1 No.
IC-YY-A Single Balanced Aluminium Cylinder

(YY represents Cylinder)

1 No.
HO-150 Hydraulic Steering Fluid 2 Liters
CT-ZZ Hydraulic Hose with factory crimped connectors (ZZ represents length of hoses) ZZ Meters



Note:

› The Steering Wheel is not included in the standard Kit. To order Steering Wheels, please refer Steering Wheels Section.
› Quantity of Steering Fluid will differ from kit to kit. Please specify your exact requirements while ordering.

Order Guide: Single Cylinder – Single Inboard Engine
Steering Kit
System Basic Components
Wheel turns
Max Torque
Recommended Steering Wheel Dia.
Part No.
Helm
Cylinder
Lock to lock
at 70 Bar
in mm
IH-16-25-A HP-16 IC-25-A 3.8 31 300
IH-23-32-A HP-23 IC-32-A 5.0 59 350
IH-27-32-A1 HP-27 IC-32-A1 5.4 74.5 350
IH-33-40-A HP-33 IC-40-A 5.1 85.5 400
IH-40-40-A1 HP-40 IC-40-A1 5.4 111 400

Note: The Steering Wheel is not included in the standard Kit. To order Steering Wheels, please refer Steering Wheels Section
